ALBERTA 4 AXLE HAYRACK
FreFlyt
Alberta 4 Axle Hayrack
$127,400.00
2024
Main Frame:
Removable two position kingpin.
Two Beam design with straight frame.
Fully fabricated high tensile main beams.
FreFlyt designed and built landing legs.
Bunks:
6, 10'6" Drop in style bunk bodies on frame of trailer with 121" drop in stakes.
Winches with crank handles installed on bunks, hooks on passenger side.

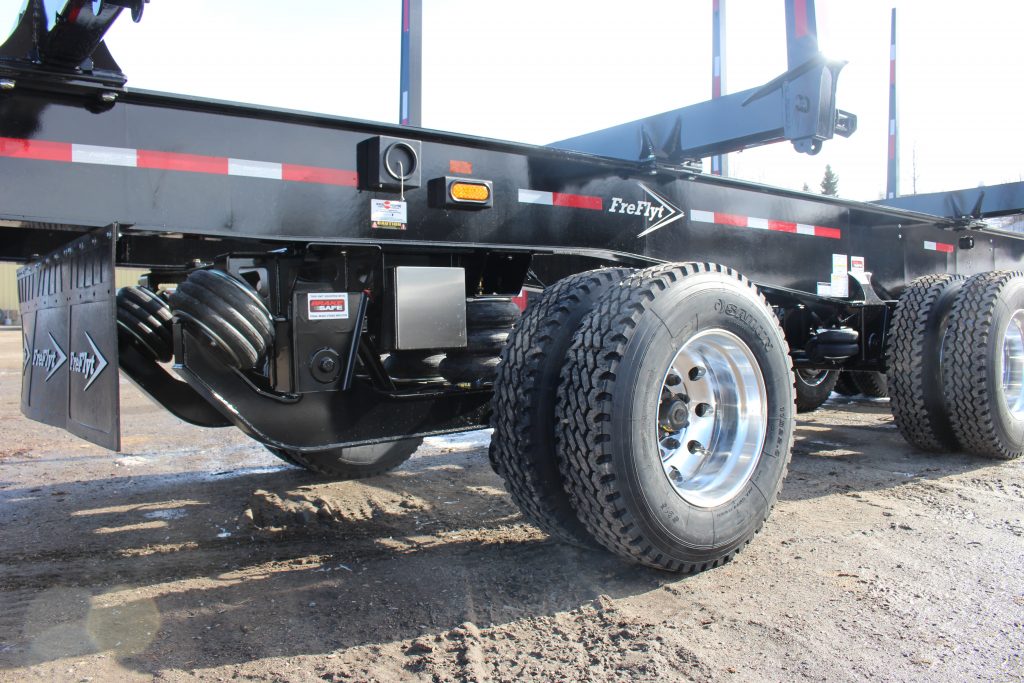

Suspension:
Hendrickson HT300 series top mount.
KGI 3/4" wall 9'6" axles with cam tubes.
Walther Cast steel Hubs and cast drums.
Type 30 maxi brakes and Rockwell automatic slack adjusters.
Trailer Fenders:
5 Bolt on fender brackets per side of trailer over truck drive wheels.
Rear ones have chain hangers for tire chains, with mud flap down to help with mud.
Steering Axle:
KGI Steer axle , 3/4 wall drop-self steer 9'6" axle, Controlled by Ride AIR suspension control
11R22.5 tires mounted on Aluminum wheels.
Lift Axle System:
Dual lift axle system with front and rear axles to auto-lift with ABS Valve.
Tires and Rims:
Your choice of 11R24.5 aluminum wheels with various tires available.
ABS Air and Electric:
ABS 2 sensor 1 module system
Air meets Canadian CMVSS 121 specs
Electrical meets Canadian CMVSS 108 specs
Paint:
Sandblasted, Primed and Painted Black
Lighting:
2 LED back up lights at rear of trailer.
