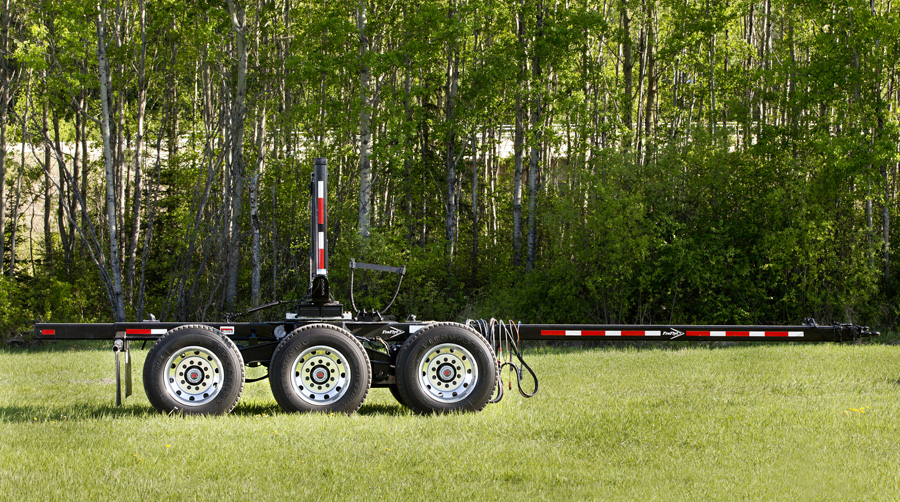

TRIDEM POLE
FreFlyt
Tridem Pole
$78,500.00
2024
CHASSIS:
145" reach tunnel for 7"x9"x3/8" reach, 2 corner reach clamps.
Body is manufactured from high tensile steel.
SUSPENSION:
Large walking beam and small walking beam have Hendrickson center bushings integrally mounted.
54" axle spacing with split cap axle mounts.
REACH:
7"x9"x3/8"x27 ' reach with 6"x8"x1/4"x12' insert.
Poly compensator, screw clamp on main reach.
Next to no reach out end of trailer, hose caddies on reach.
AXLES:
Ingersoll 3/4" wall axles, F22H77, Stemco seals, with solid bushing-less cam tubes, Rockwell automatic slack adjusters with 16-1/2"x7" ES brakes.
TIRES/RIMS:
Your choice 11R24.5 aluminum rims rated at 8,800 lbs with various tires available.
HUB/DRUMS:
Light weight Walther 10 stud steel uni-mount hubs with cast drums.
BUNK:
9'6" Low profile solid bunk, cutting edge in center of bunk.
BOLSTER:
1-1/2" T100 Bolster c/w 17" turntable
LIFTING:
1-1/8" moly lift bar
ADDITIONAL:
L.E.D. Lighting, ABS equipped on 2 axles.
SCALES:
Choice of Vulcan or SI scale systems.
PAINT:
Unit in sandblasted, primed and painted Black
